Atmos Medical S61 Servant Corian with iView ENT Workstation

by Atmos Medical
$218,900.00

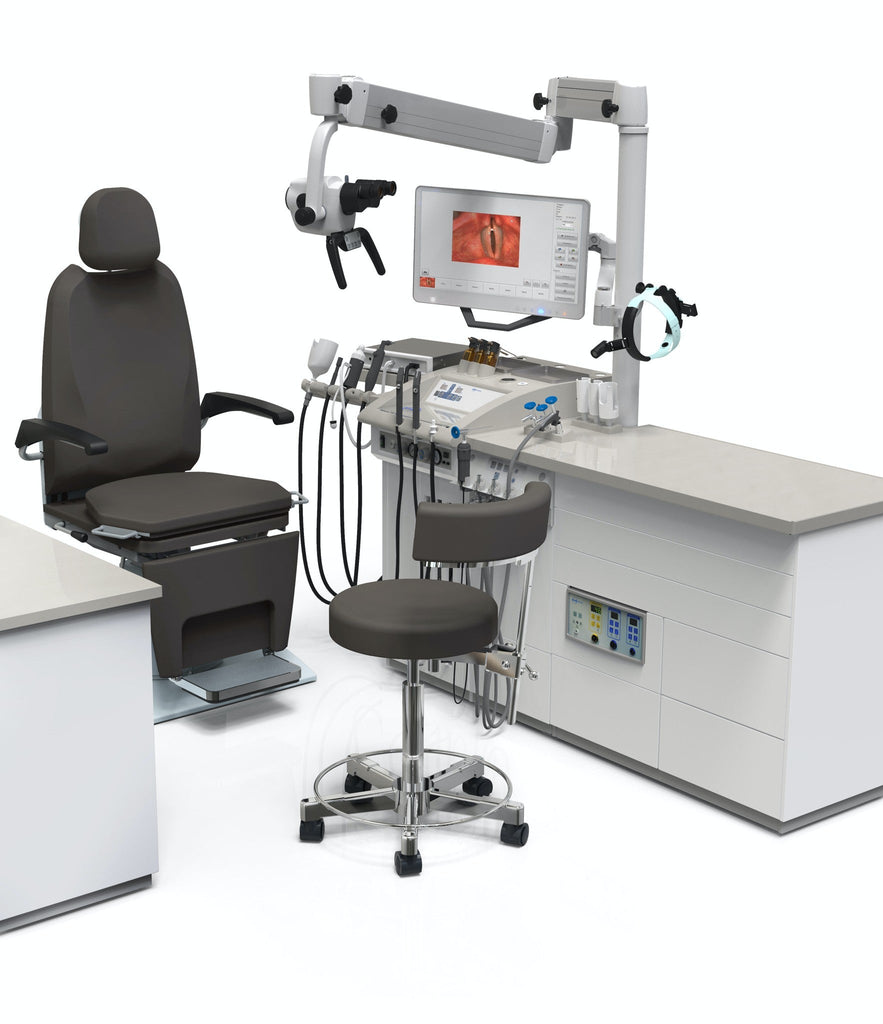

Atmos Medical S61 Servant Corian Infection Control ENT Workstation, includes built in iView 31 Microscope, iQAM Endoscope, powerful 40 L/min suction system, endoscope light source, high spec 24" touch screen PC, instrument management with one touch ServoDrive drawers, patient chair and doctor's chair.

Workstation Features

  • iView 31 Diagnostic Microscope with LED light source
  • Medical Suction System - 40 L/min
  • Medi-Vac disposable secretion management system
  • Compressed Air Module with pressure fine adjustment
  • Manual hose rinsing with manual filling (hygiene module)
  • Manual evacuation of Secretion System
  • Light source - 3x LED Light sources / Light conductors
  • Shelf for endoscopic management, heated, 3 rigid and 3 flexible endoscopes, including quivers and protectors
  • 3 Sprayer Bottles for fluid and medication
  • Mirror Quick Heater
  • All-In-One Touch Screen PC (24", Core i7, 16GB RAM, 2TB SSD, 2TB HDD, Win 10)

Microscope Features

  • ATMOS i View 31 Microscope
  • Vibration free and fan less system
  • Automatic switching between microscope camera and endoscopic camera
  • Integrated microscope stand
  • Mobile stand with monitor holder
  • Easy to manoeuvre via four swivel castors with brakes
  • Cable guide inside the stand
  • Objective: 200 mm
  • 5-steps magnification changer
  • Binocular straight tube, 10-times
  • Integrated Full HD camera
  • T-handle for ATMOS i View

Endoscope

  • ATMOS iQam HD endoscopic USB camera
  • Quick lock
  • Smart adjust
  • Completely Submergible cleaning
  • Magnetic camera head holder

Cabinet Features

  • DuPont™ Corian® non-porous surface coates the top, side, front, drawers and doors
  • Does not support the growth of mould, mildew and bacteria
  • Helps to reduce the spread of infection
  • All drawers are Servo-Drive® Electric Handless Opening
  • 3 wide flat drawers
  • 1 standard drawer
  • Drawer for instrument deposit
  • One large waist bin drawer

Doctor's Chair

  • ATMOS Doctor's Chair with 5 double castors
  • Height adjustment by gas spring system
  • Backrest with variable height adjustment
  • Rotatable backrest (approx. 180°) for use as elbow rest

Patient Chair

  • ATMOS Chair Professional Mobile
  • Electric height adjustment by separate foot switch
  • Includes mobility for easy lifting within seconds
  • Flexible positioning, upper part rotates 360°
  • Detent on both sides
  • Manually adjustable backrest from + 7° forward to - 90° (shock position)
  • Height adjustable headrest
  • Synchronously coupling of the backrest, leg rest and arm rests
  • Retractable foot support
  • Arm rests can be folded up to easily reach the patient

    Atmos Workflow Efficiency - Digital Demonstration

    This 11 minute video from 2012 will show some of the workflow efficiencies that can be achieved using the Atmos ENT workstation.
