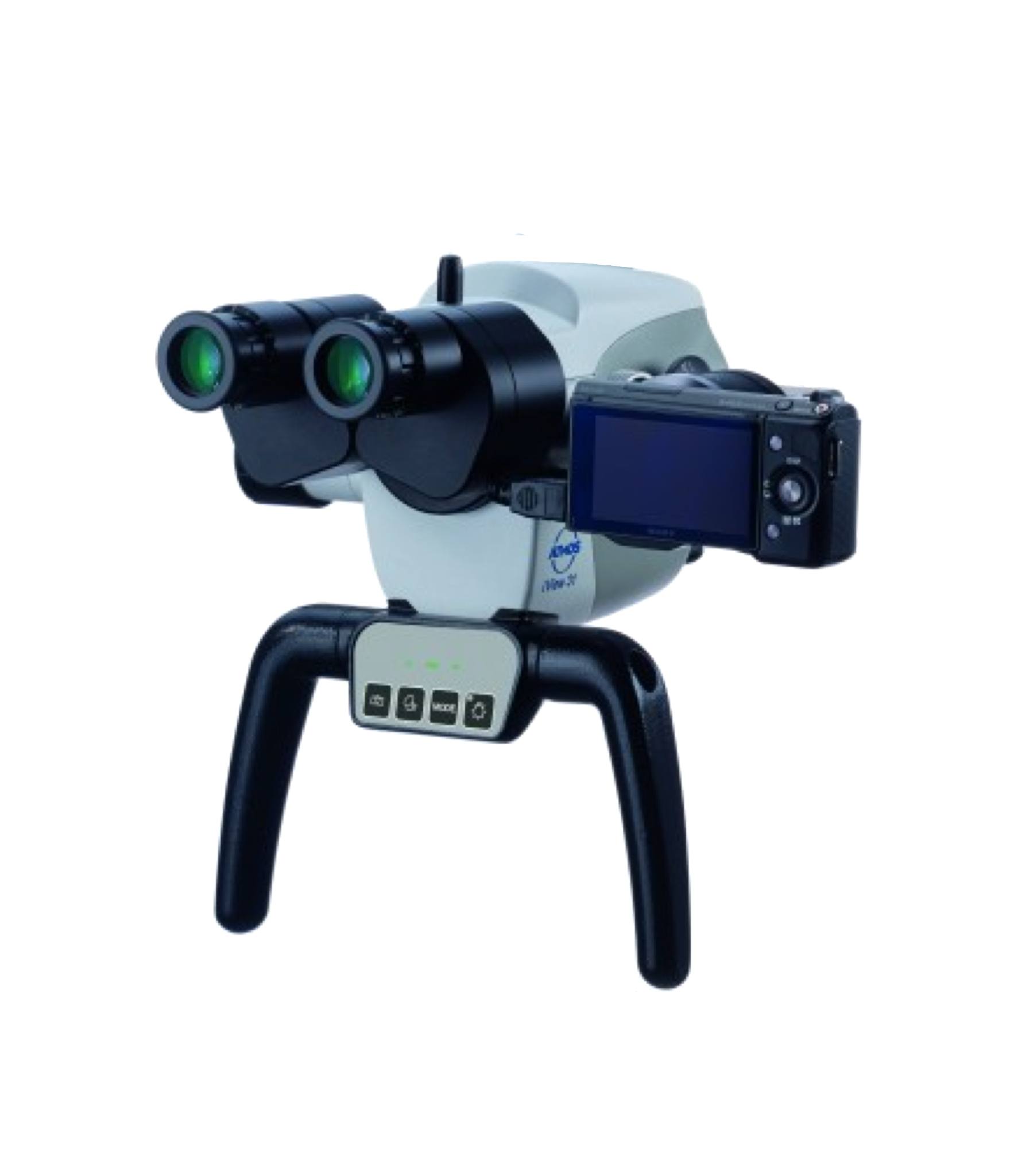

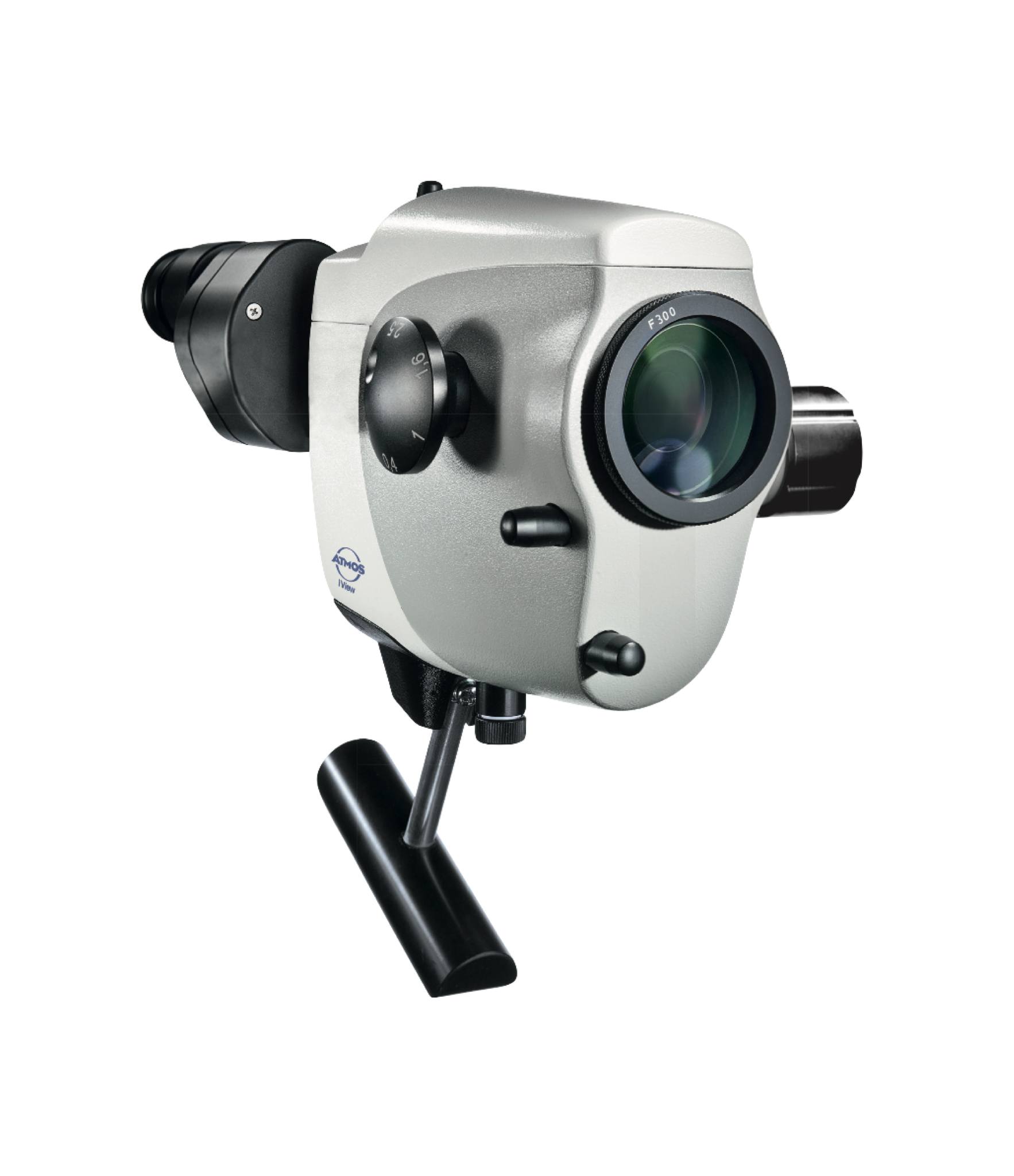

Atmos Medical iview 31 Colposcope

The ATMOS iview COLPO colposcope sets a high standard in terms of light intensity, depth of field, and intuitive handling. Its LED lighting, high-resolution optics, and HD camera technology are state-of-the-art. The innovative H.A.S.I. filter method provides incredible contrast enhancement of vessels on the mucosa for the early detection of cervical cancer. Innovative LED technology enables homogeneous illumination, natural colour rendering, automatic white balancing, and low thermal stress on the mucosa. The iview 31 colposcope, with integrated HD camera can easily integrate into existing practice software via GDT, DICOM, and HL7 via the Atmos viewer software.

Features

• Integrated HD Camera for capture and storage
• Integrated fan-less LED Cold light source
• Large exit pupil makes working fatigue-free
• Optimum 3D representation due to the large stereo base
• High optical resolution thanks to colour-corrected lenses
• Patented doubling of the depth of field
• Five levels of magnification from 4.3- to 17-fold

H.A.S.I Filter

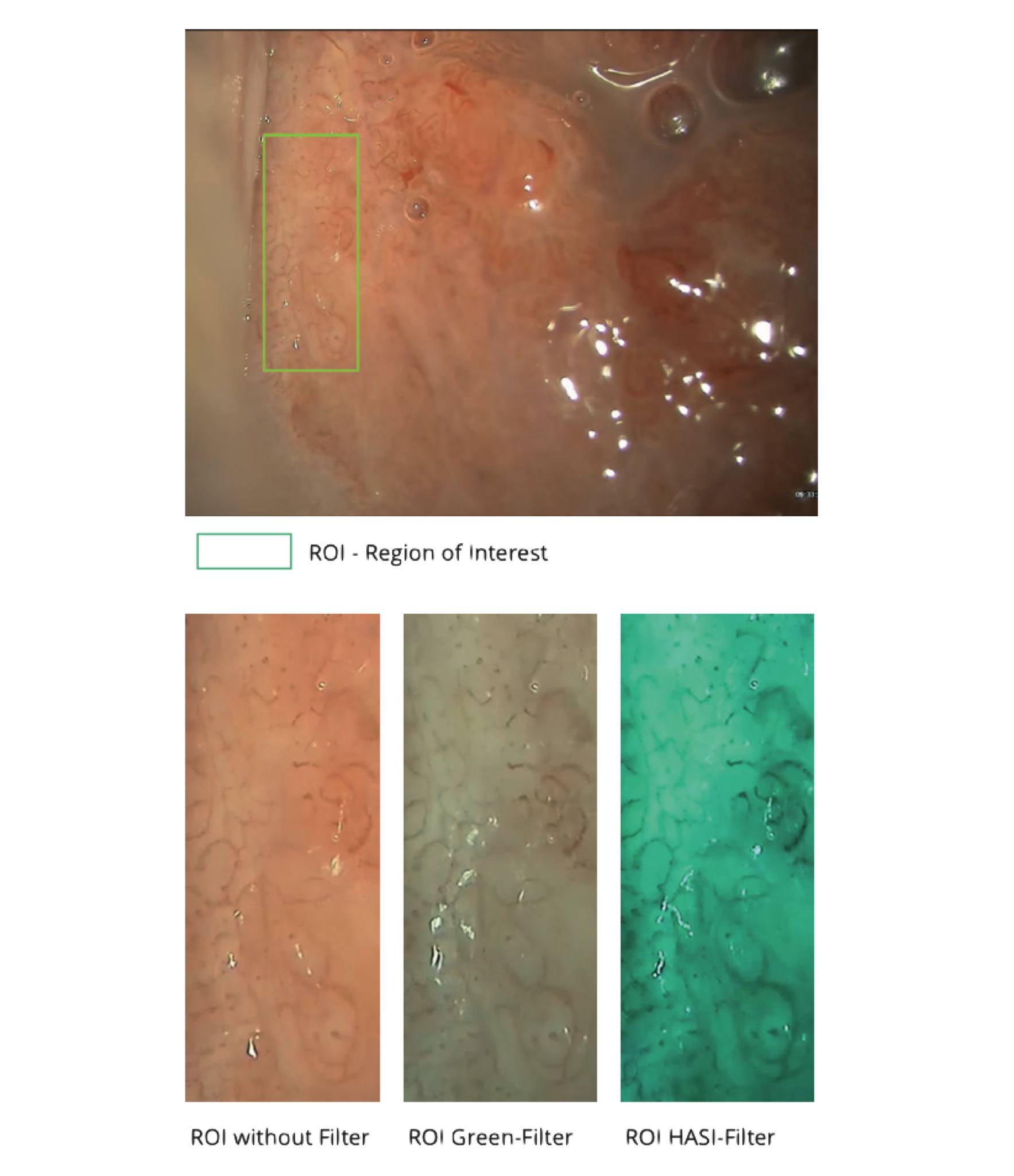

The newly developed Haemoglobin Absorption Spectral Imaging (H.A.S.I.) filter is an innovative filtering method that enhances the contrast of vessels to the mucosa. The better contrast allows for better detection of vascular changes and capillary indicators. The H.A.S.I. filter takes two maximum absorption levels into account: the green wavelength range at about 550 nanometers and the blue wavelength range at 450 nanometers.

Digital Demonstration

This video details how the use of a H.A.S.I. filter improves the contrasting of the vessel changes by an average of 20% compared to conventional green filters.
