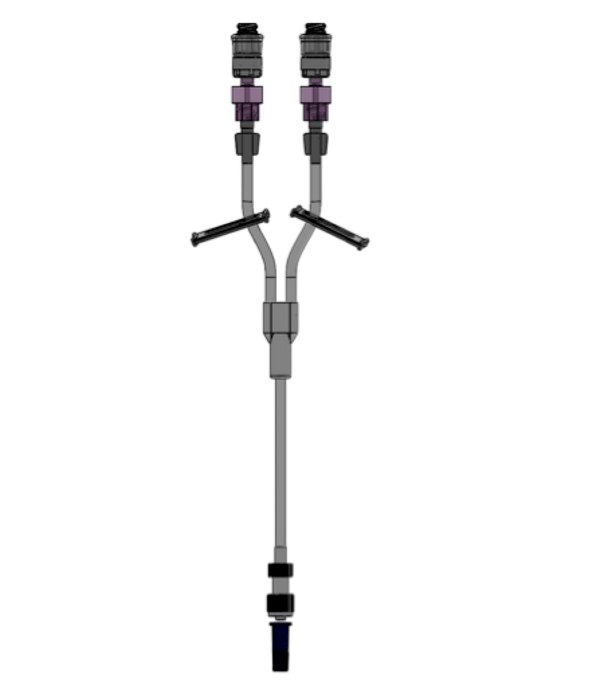

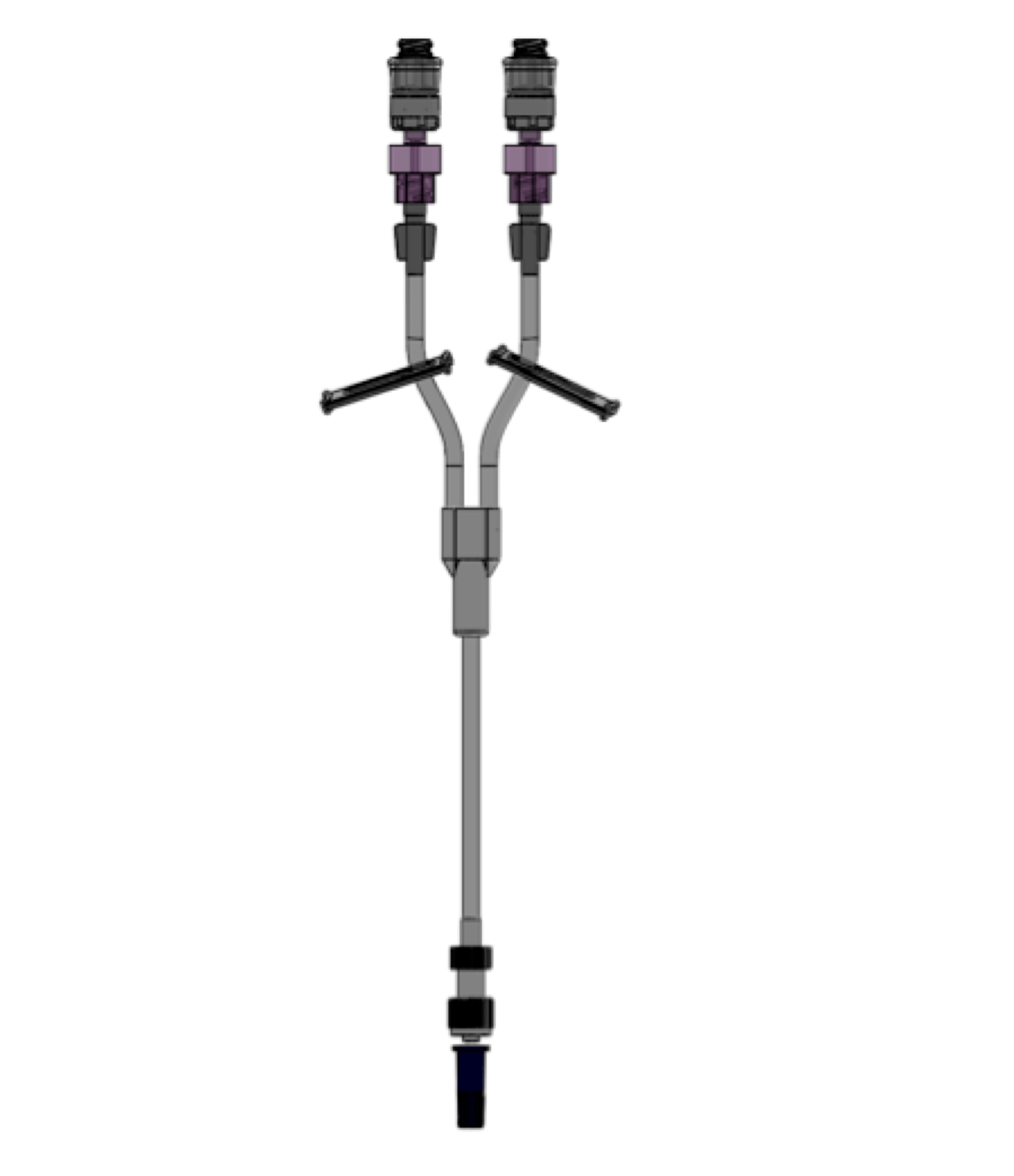

FlowArt Double Lumen With Check Valve Macrobore Anti Reflux
FlowArt Wide Bore Double Lumen Needle Free Valve Y-Extension Line with Check Valve. This configuration features 2x One Directional Anti Reflux Check Valves - Length 18cm.
FlowArt® wide bore double lumen needle-free valve port extension line with check valve is an extension set with needle-free valves which have a fully transparent clear housing with an integrated flat silicone seal and one directional internal fluid pathway toward the patient that protects the patient and nursing staff from exposures.
Quantity: 50 / Box
Product Code: FLO-AWB2010CVYL18
Priming Volume: 2.0 mL
Flow Rate: Up to 204 mL/min
Length: 18cm
** Photoprotective version available upon request - Please use the Contact page to discuss further.
Features:
- Fully Transparent Valve
- Gapless split septum seal
- Flat closed seal that provides a swabable microbial barrier
- Suitable for 7 days / 600 activations
- Enhanced visualisation compared to opaque products
- Compatible with Luer Slip and Luer Lock syringes
- Free of PVC, latex and metals.
- ISO 80369 standard compliant - Small-bore connectors for liquids and gases in healthcare applications
- ISO 80369-7 standard compliant IV sets using luer lock connections.
Suitable for:
- Blood transfusion
- Lipids
- Oncology
- MRI procedures
- High flow rate infusions (Flow rate up to 204 mL/min)
Research:
The prevalence of reported Needle Stick Injuries (NSIs) in Australia per year was estimated to be 18,000 in Australian hospitals alone before the introduction of Safety Engineered Devices (SEDs) [1-2]. Considering this number is only the reported incidences and underreporting in Australian hospitals is estimated to be 40%, [3] this is a significant hindrance in maintaining a safe work environment. There are a number of diseases that can be transmitted through NSI, including the human immunodeficiency virus (HIV), hepatitis B (HBV) and hepatitis C (HCV). The use of SEDs has been shown to reduce NSIs by up to 31% during a 9-month implementation period. [4]
- Cathryn Murphy – (2008), Improved surveillance and mandated use of sharps with engineered sharp injury protections: a national call to action
- The Australian Council on Healthcare Standards - (2012) Infection Control version 3.1. Retrospective data in full. Australasian Clinical Indicator Report: 2004—2011. In (13th ed.). Sydney NSW; ACHS.
- Australian Safety and Compensation Council – (2008) Occupational Exposures in Australian Nurses. Canberra: Australian Government.
- Goris, Ashleigh J., Gemeinhart, Nancy, and Babcock, Hilary M - (2015) “Reducing Needlestick Injuries from Active Safety Devices: A Passive Safety Engineered Device Conversion.” AJIC: American Journal of Infection Control 43.6
