Atmos Medical C11 Microscopic ENT Workstation

SKU ATM-541-0000-0
Request a quote
Availability:
In stock

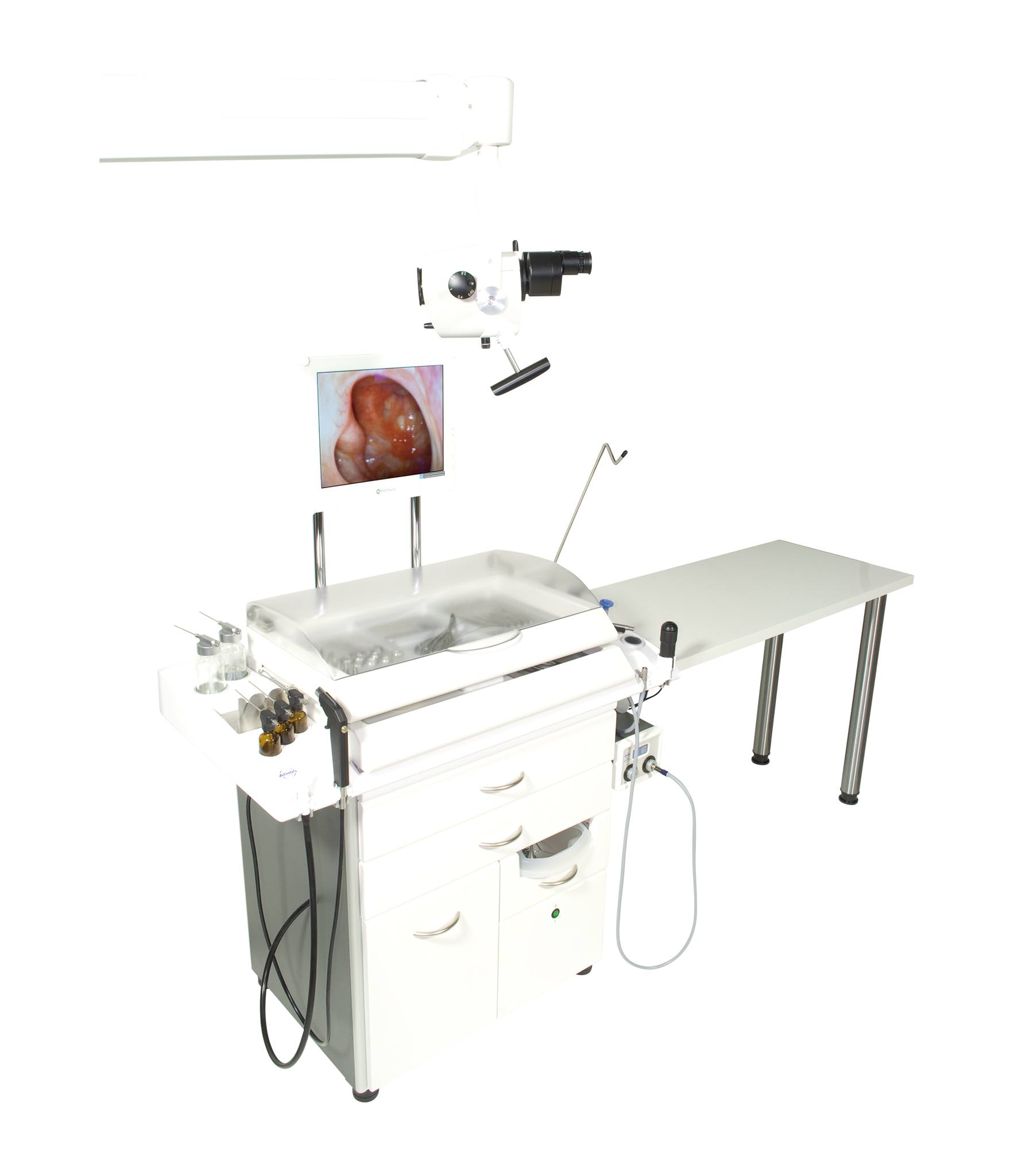

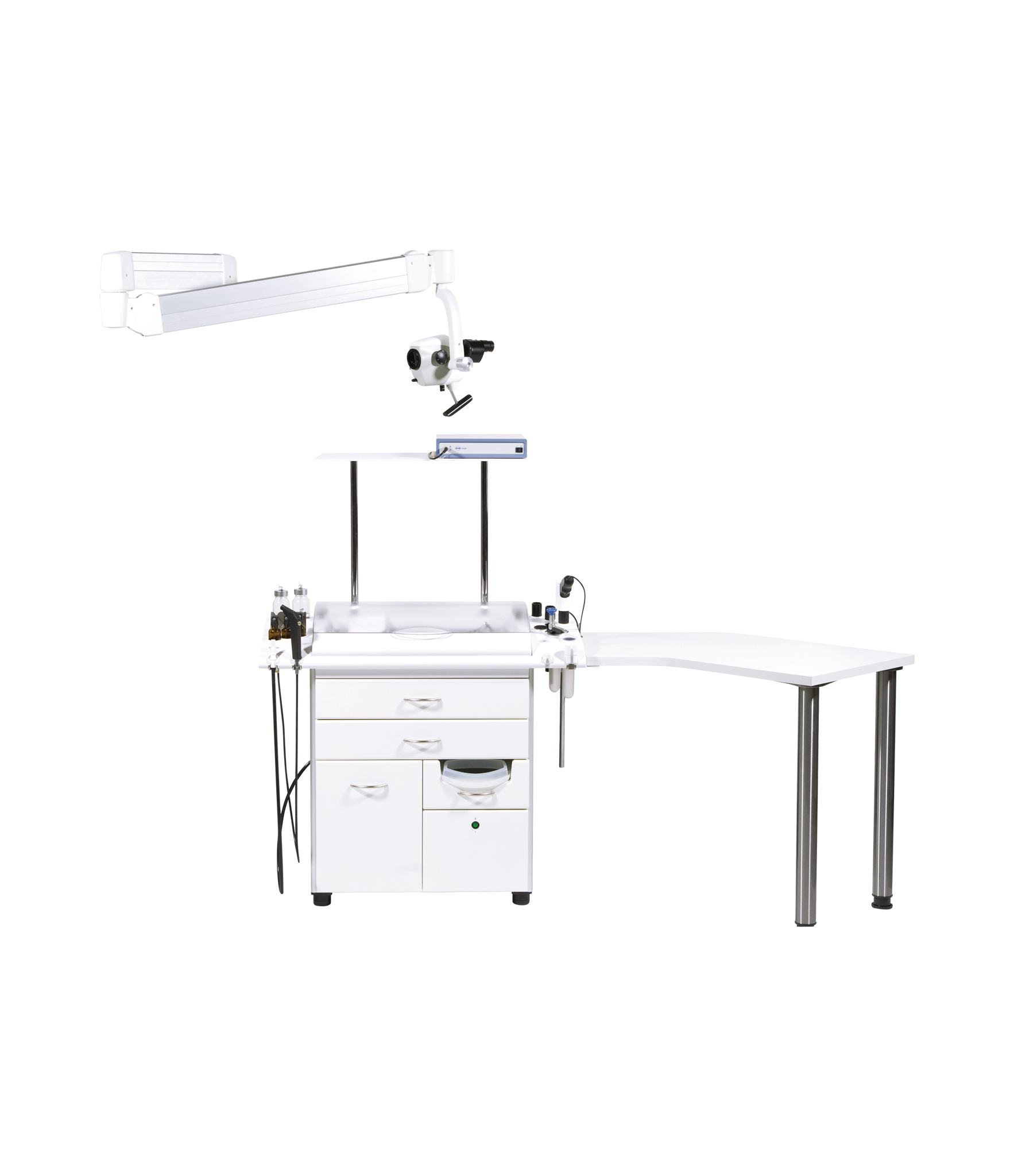

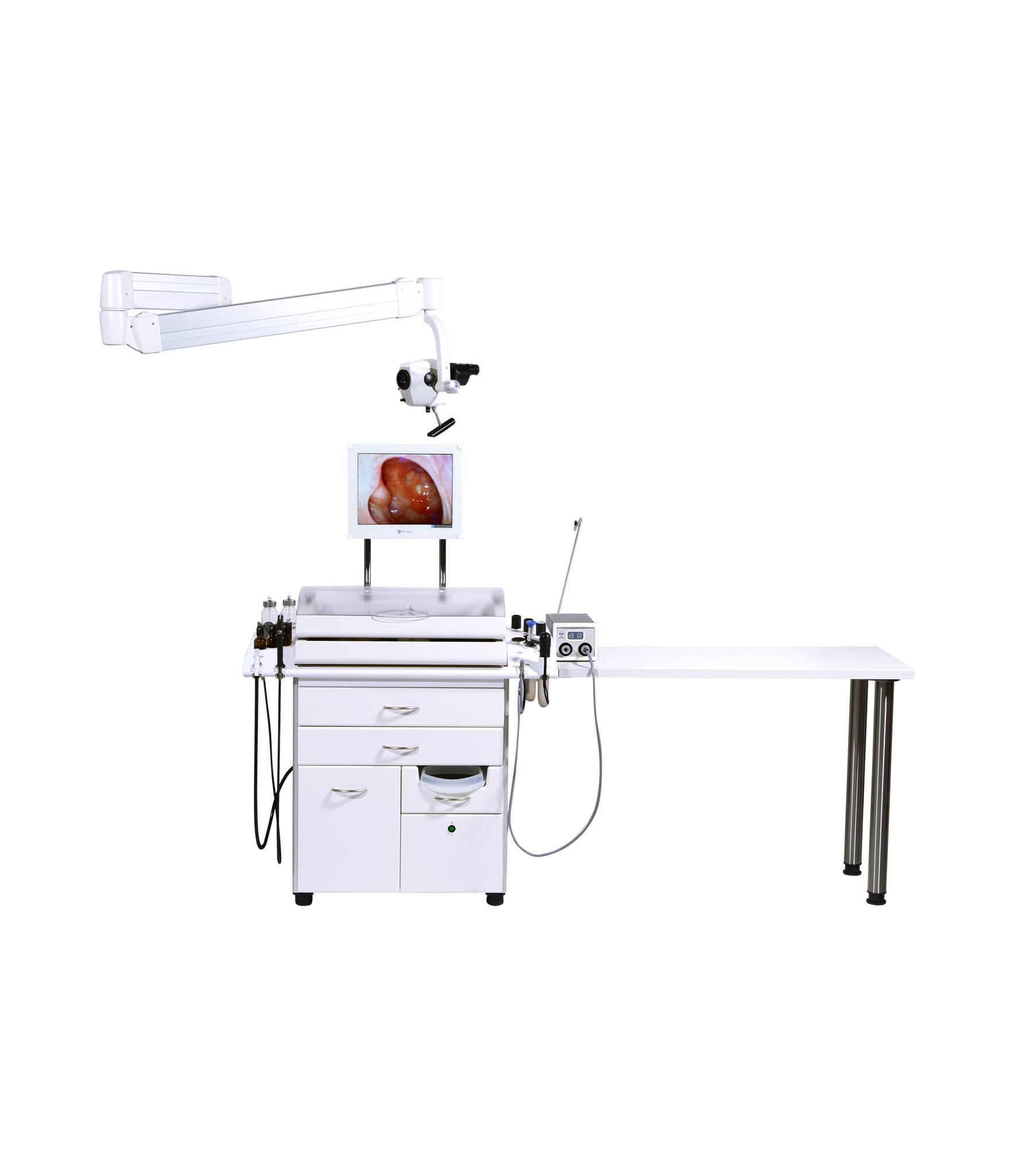

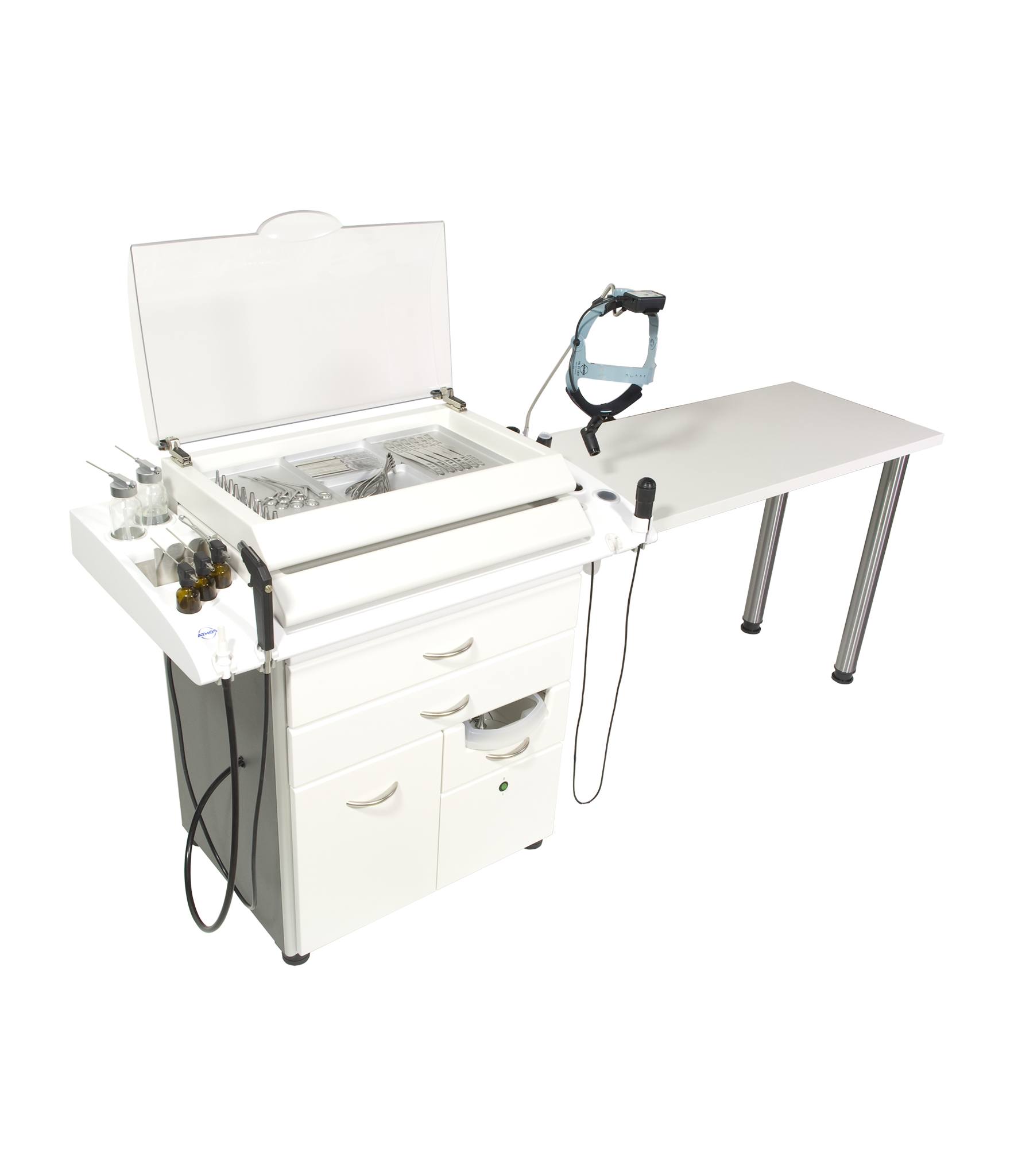

Atmos Medical C11 ENT Workstation, includes built in iView 21 Microscope, suction system, endoscope light source, high spec 24" touch screen PC, instrument management, patient chair and doctor's chair.

Workstation Features

  • iView 21 Diagnostic Microscope with LED light source
  • Medical Suction System - 18 L/min
  • Compressed Air Module
  • Manual evacuation of Secretion System
  • Light source - 1 LED Light source / Light conductor
  • Non-Heated Endoscopic Management - one rigid and one flexible endoscope
  • 3 Sprayer Bottles for fluid and medication
  • Mirror Quick Heater
  • Monitor Mount with All-In-One Touch Screen PC (24", Core i7, 16GB RAM, 2TB SSD, 2TB HDD, Win 10)

Microscope Features

  • ATMOS iView 21
  • Objective: 300 mm
  • 5-steps magnification changer
  • Binocular straight tube (10-times)
  • T-handle
  • Mechanical support arm and Integration stand

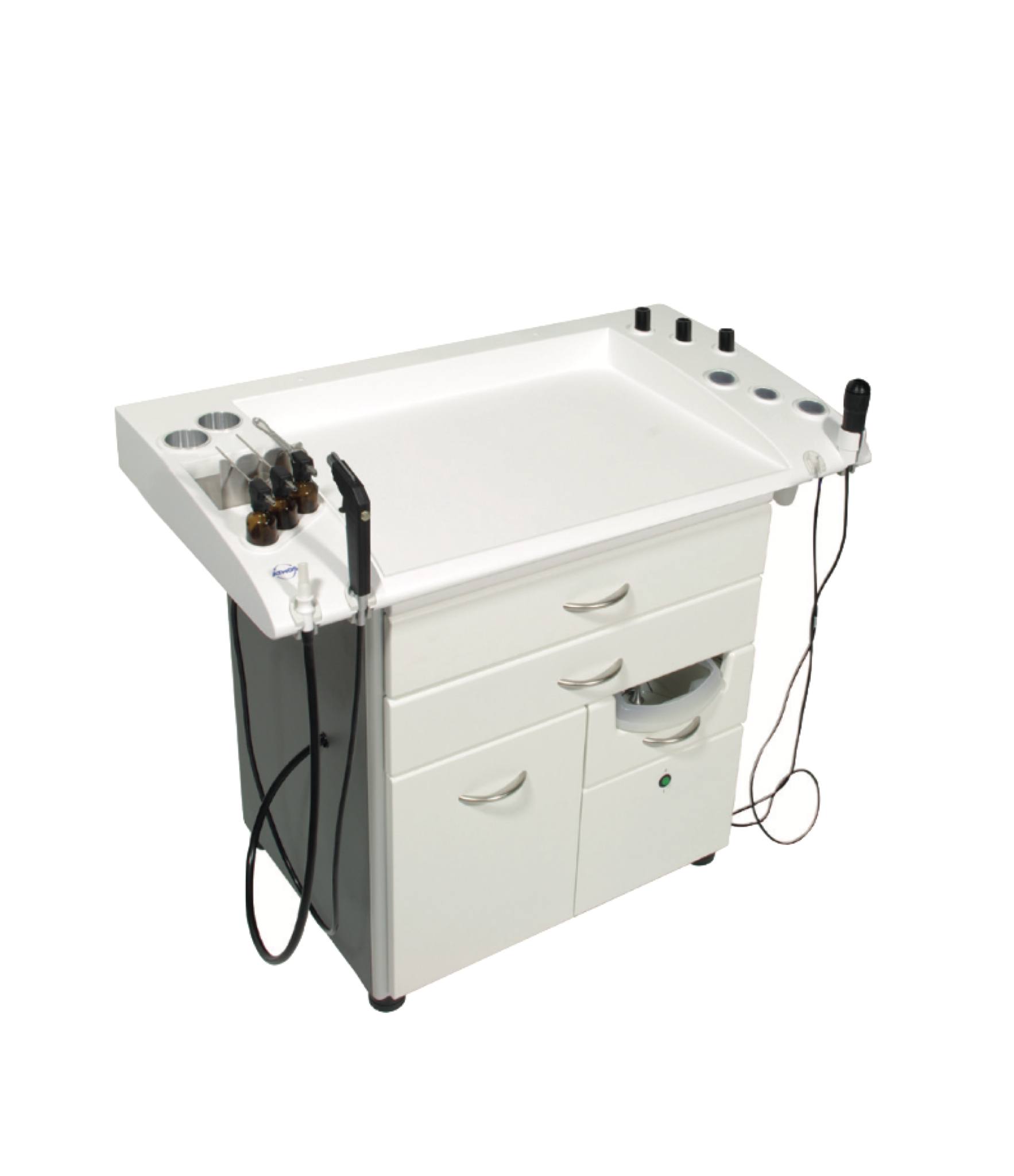

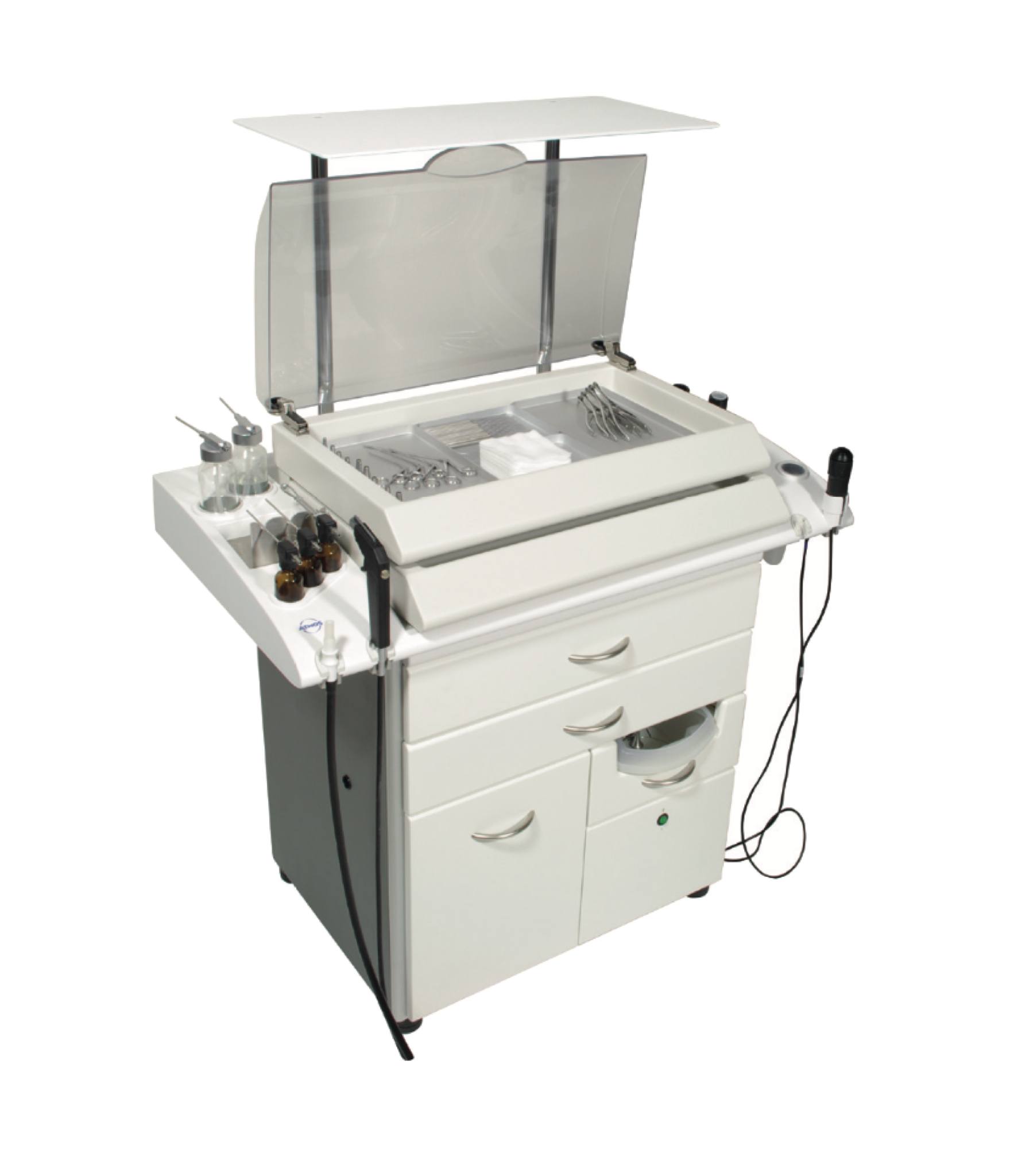

Cabinet Features

  • Sturdy metal housing with easy to clean surfaces

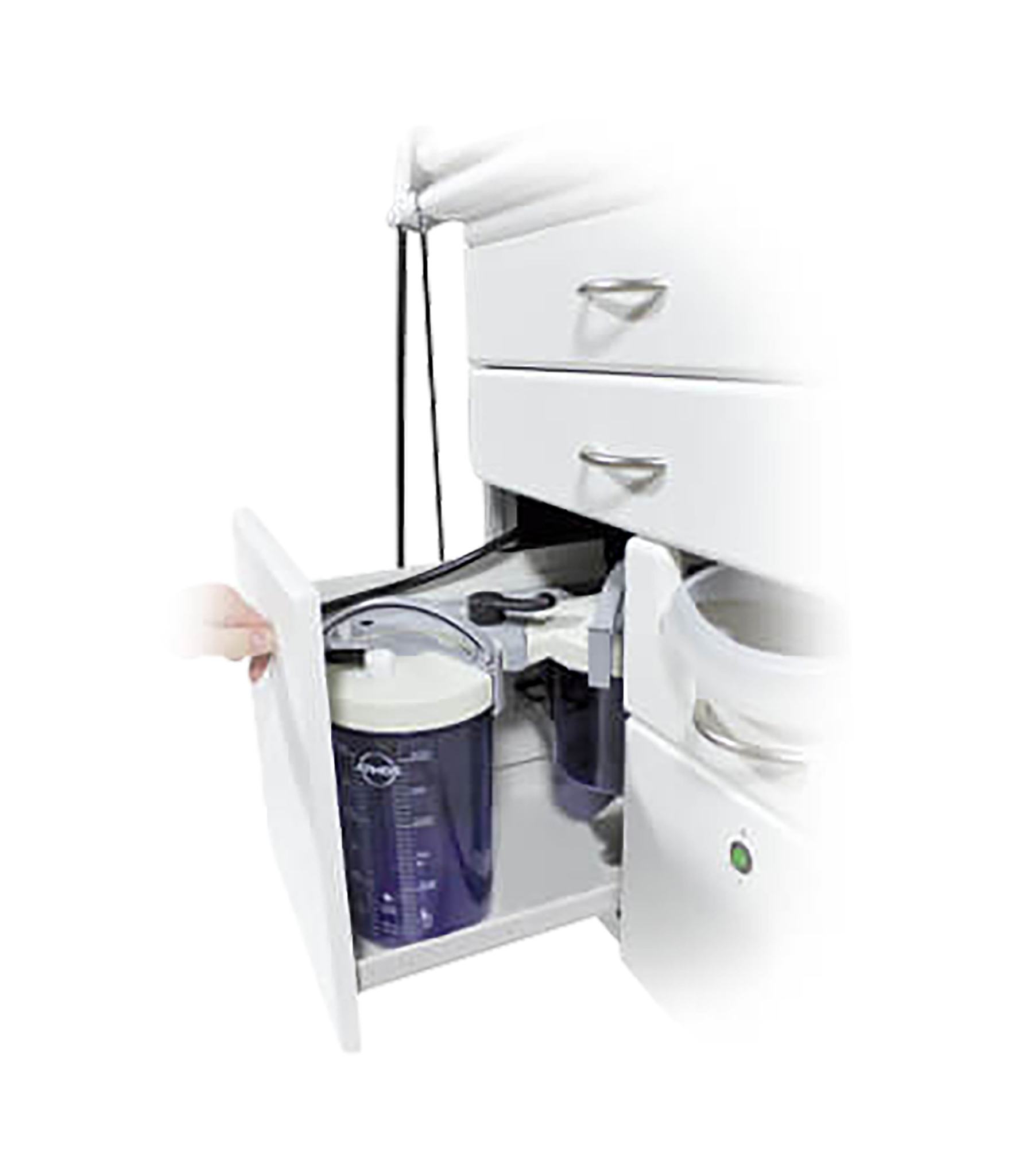

  • Medi-Vac disposable secretion management system
  • Instrument surface for four big trays
  • Drawers for instrument storage and consumables.
  • Set of stainless steel trays
  • Deposit for used instruments
  • Monitor Mount
  • Casters which allow easy manoeuvrability

Doctor's Chair 21 D

  • Seamless seating made of abrasion and tear-proof leatherette.
  • Seat height adjustment with gas spring system
  • Extra small star base (D: 47 cm) for close position to the patient

ATMOS 21P Patient Chair

  • Modern and functional design with seamless seating made of abrasion and tear proof leatherette
  • Backrest variable from -5° to +45° with gas pressure spring
  • Sturdy plastic arm rests
  • Open in front for optimum legroom
  • Safe positioning of the head with height-adjustable headrest
  • Variable seat height adjustment with mechanical hydraulic pump
  • Easy patient positioning as chair rotates around 360°
  • Seat easily be modified using foot pedal
  • Powder-coated base with rubber protecting ring



Atmos Workflow Efficiency - Digital Demonstration

This 11 minute video from 2012 will show some of the workflow efficiencies that can be achieved using the Atmos ENT workstation.
